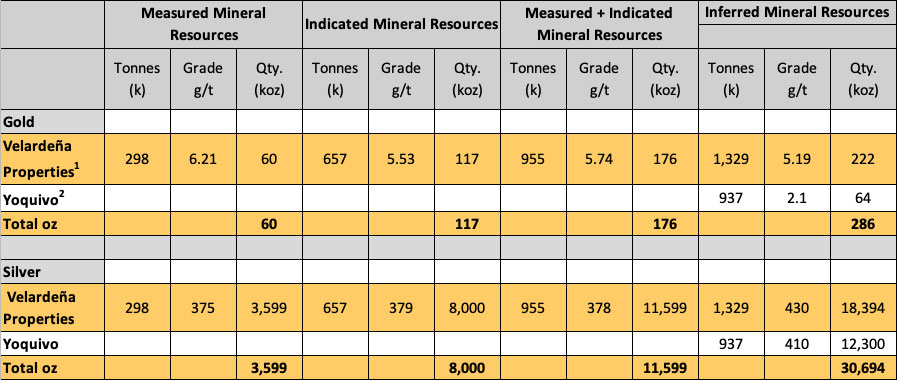

Note: As of Dec. 31, 2022; Yoquivo as of Feb. 24, 2023
Yoquivo diamond drilling was conducted by Eco Drilling México S. de R.L. de C.V with a Coretech CSD 1300G rig. Drill holes were drilled to depths ranging from 150m to 351m and were drilled at azimuths of 107° to 347o and a dip ranging from -45o to -76°. No water was encountered during drilling. Holes were positioned with a hand-held GPS (accuracy +/- 5 meters) and later surveyed with a Differential GPS once the drilling campaign was completed.
Samples of the core were obtained using a diamond saw to cut the core in half, retaining one half for a permanent core record, and the other sent for analysis.
Drill-core samples were shipped to ALS Chemex sample preparation facility in Chihuahua, Chihuahua, Mexico for sample preparation and for analysis at the ALS laboratory in North Vancouver, British Columbia, Canada. The ALS Chihuahua and North Vancouver facilities are ISO 9001 and ISO/IEC 17025 certified. ALS Global in North Vancouver is a facility certified as ISO 9001:2008 and accredited to ISO/IEC 17025:2005 from the Standards Council of Canada.
Samples were crushed to 70% passing 2mm (PREP-31) with a split of up to 250 grams pulverized to 85% passing 75 micrometers (-200 mesh). The sample pulps and crushed splits were transferred internally to ALS Global’s North Vancouver analytical facility for gold and multi-element analysis. Pulps (30 gram split) are submitted for Au analysis by fire assay with atomic absorption finish (Au-AA23) and silver samples were analyzed by atomic absorption (Ag-AA45).
Over-limit Au (>10.0 g/t Au) and Ag (>1500 g/t Ag) samples are analyzed by fire assay with gravimetric finish (Au-GRA22 and Ag-GRA21). Over-limit base metal samples (>10,000 ppm or 1%) are re-analyzed inductively coupled plasma atomic emission spectrometry using protocols for higher grade results (ICP-AES) for Cu, Pb and Zn (Cu-OG62, Pb-OG62, Zn-OG62).
In-house quality control samples (blanks, standards, duplicates, preparation duplicates) were inserted into the sample set by Golden Minerals. ALS Global conducts its own internal QA/QC program of blanks, standards and duplicates, and the results were provided with the Company sample certificates. The results of the ALS control samples were reviewed by Golden Minerals and the Company’s QP and evaluated for acceptable tolerances.
All sample and pulp rejects are stored at the Company’s secure warehouse in Velardeña, Durango pending full review of the analytical data, and future selection of pulps for independent third-party check analyses, if required.
